Simple corner clamping jig

Share everything from your tablesaw sled design to how best to calculate magnetic North using only woodshavings and a blunt carpenters pencil...

Simple corner clamping jig

Postby 9fingers » 16 Jun 2015, 12:30

This can't be original but I've not made any before. Triggered by seeing some near infinitely expensive plastic moulding from Rutlands the other day and the need to clamp up my barrister bookcase prototype.

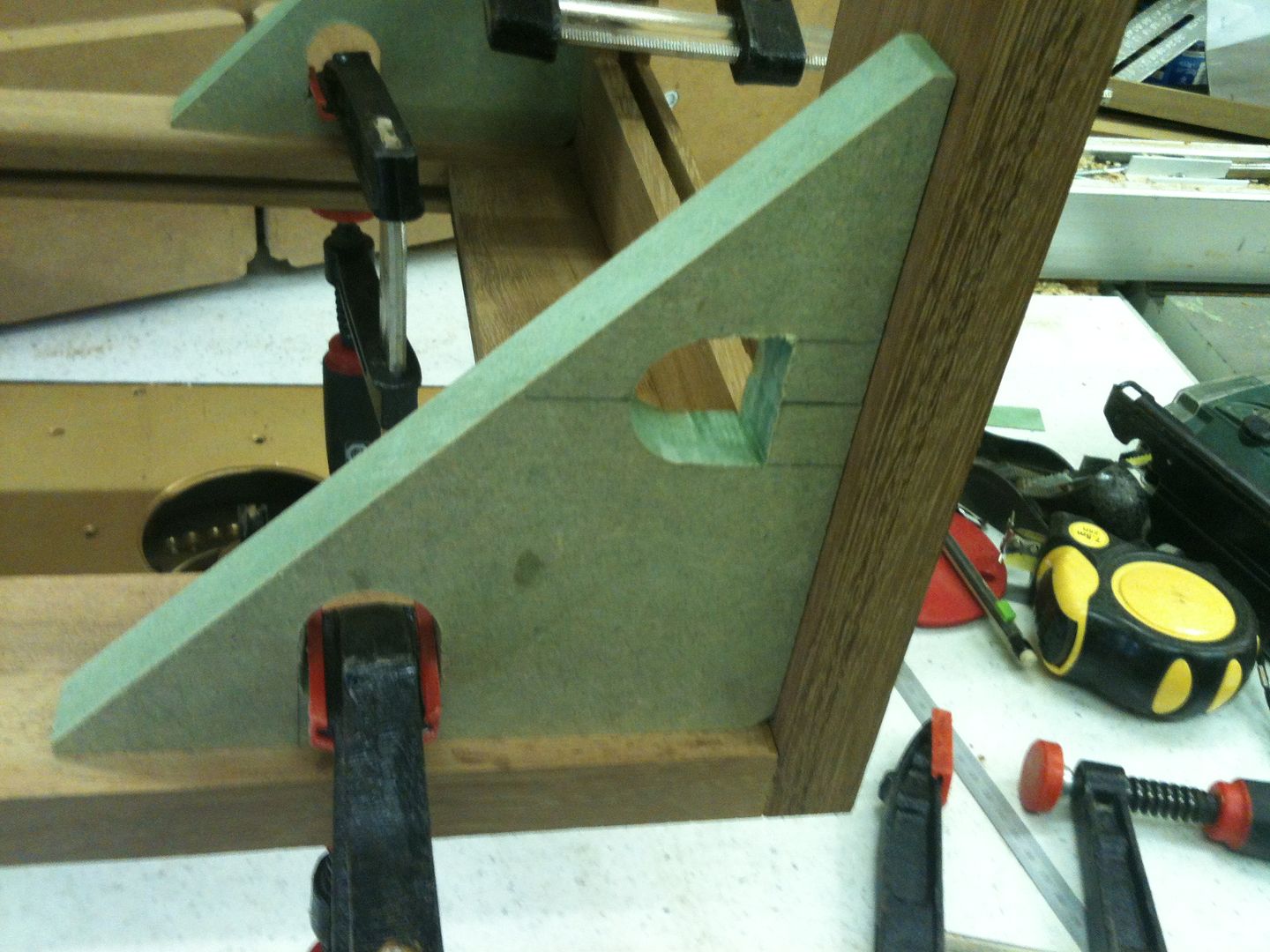

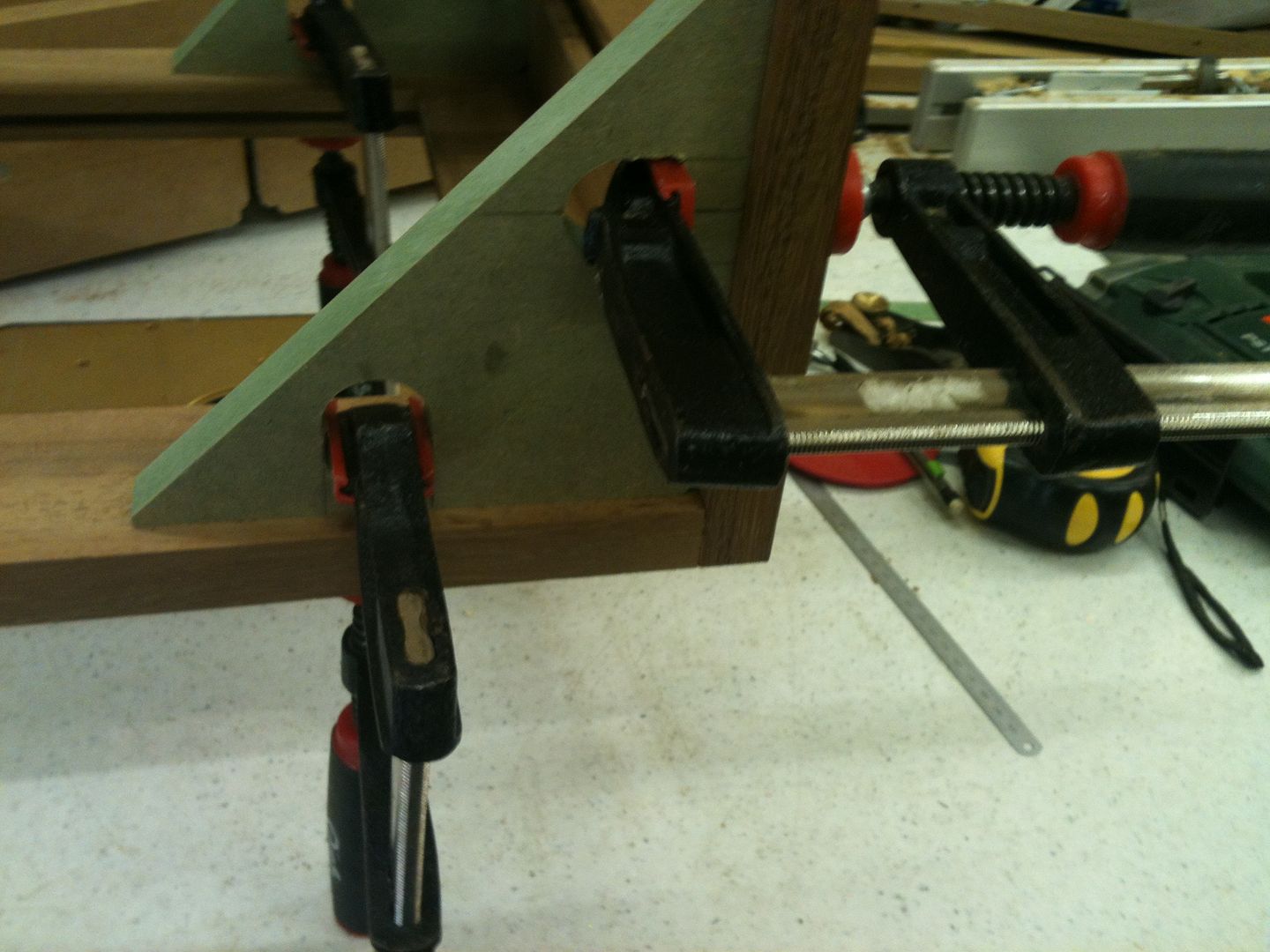

I made 4 in about 1/4hr. I think the pictures tell it all really.



A small chamfer on the 90 degree corner helps stop any glue squeeze out from attaching the jig to the work.

They are a pleasure to use and easily made from scrap.

Oh yes and take the time to set/check your TS cuts perfectly square. In the process I noticed everyone of my woodworking try-squares was in error on one face of other. I ended up machining it truly square on the milling machine and marking it "OK". The others will get the treatment on a round-2-it basis.

Bob
Information on induction motors here
https://drive.google.com/file/d/0B_GZrX ... sp=sharing
Email:motors@minchin.org.uk
User avatar
9fingers
Old Oak

Posts: 3182
Joined: 21 Jul 2014, 20:22
Location: Romsey Hampshire between Southampton and the New Forest
Name: Bob

Re: Simple corner clamping jig

Postby chataigner » 16 Jun 2015, 12:37

I saw the Rutlands ones too - this is just as good and made from the scrap bin (or mine at least will be !).
Cheers !
Chataigner in Périgord-Limousin National park
http://www.rue-darnet.fr
User avatar
chataigner
Nordic Pine

Posts: 728
Joined: 23 Jul 2014, 08:02
Location: Périgord-Limousin National Park, SW France
Name: David

Re: Simple corner clamping jig

Postby Rod » 16 Jun 2015, 13:37

Nice idea

Rod
User avatar
Rod
Old Oak

Posts: 2399
Joined: 21 Jul 2014, 21:34
Location: Winchester, Hampshire
Name:

Re: Simple corner clamping jig

Postby stephen.wood125 » 16 Jun 2015, 14:15

great idea!

Thanks, Bob!
stephen.wood125
New Shoots

Posts: 214
Joined: 10 Aug 2014, 17:08
Location: Frodsham, Cheshire
Name: Stephen

Re: Simple corner clamping jig

Postby Andyp » 16 Jun 2015, 15:08

Yep the best solutions are also the simplest and I wouldn't mind betting that yours are probably more accurate then the ones from Rutland.
cheers

Andy
User avatar
Andyp
Old Oak

Posts: 3640
Joined: 22 Jul 2014, 07:05
Location: 14860 Normandy, France
Name: Andy

Re: Simple corner clamping jig

Postby 9fingers » 16 Jun 2015, 15:39

Andyp wrote:Yep the best solutions are also the simplest and I wouldn't mind betting that yours are probably more accurate then the ones from Rutland.



I quite expect the basic 90 degrees will be ok on the rutlands ones but the problem with any plastic moulding is that it needs a draft angle on the faces to get it out of the mould so the two faces that hold against the work might well have a slight angle on them which means a portion of the clamping force will go to distort the plastic and then the trouble can start.

I'm really please with these and should have made some ages ago. even after a perfect dry fit of parts most glue-ups turn stressful once the sticky stuff has been applied and these jigs can help reduce the degrees of freedom. Custom variants are easy enough to knock up even if you need a non right angle joint for a project.

Bob
Information on induction motors here
https://drive.google.com/file/d/0B_GZrX ... sp=sharing
Email:motors@minchin.org.uk
User avatar
9fingers
Old Oak

Posts: 3182
Joined: 21 Jul 2014, 20:22
Location: Romsey Hampshire between Southampton and the New Forest
Name: Bob

Re: Simple corner clamping jig

Postby TrimTheKing » 16 Jun 2015, 20:37

Very good.

Mark
TrimTheKing
Site Admin

Posts: 2753
Joined: 16 Jun 2014, 13:27
Location: Grappenhall, Cheshire
Name: Mark

Re: Simple corner clamping jig

Postby stu » 16 Jun 2015, 21:20

Hi Bob - do you use the to hold everything square until you put on larger clamps?
stu
Seedling

Posts: 30
Joined: 22 Jul 2014, 06:58
Name:

Re: Simple corner clamping jig

Postby 9fingers » 17 Jun 2015, 09:28

stu wrote:Hi Bob - do you use the to hold everything square until you put on larger clamps?

Hi Stu
I did a dry fit with pipe clamps holding the dovetail joints where I wanted them (these were cut a tad too deep :oops: ) and then fitted the corner jigs.
Then when I took it apart to apply glue, I left each corner jig in place with one clamp which made life even easier on re-assembly. I had a base and two ends firmly clamped at 90 degrees and then could add the top only having to check the depth of the DTs
These jigs avoid the need for any diagonal persuaders which for me always seem to get is the way of the other clamps.

Will we see this sort of jig in use in a local "pro" shop in future maybe?

Bob
Information on induction motors here
https://drive.google.com/file/d/0B_GZrX ... sp=sharing
Email:motors@minchin.org.uk
User avatar
9fingers
Old Oak

Posts: 3182
Joined: 21 Jul 2014, 20:22
Location: Romsey Hampshire between Southampton and the New Forest
Name: Bob

Re: Simple corner clamping jig

Postby Commander » 10 Jul 2015, 12:03

I really like that! Nice ans simple and effective! What material did you make them from?
Commander
Sapling

Posts: 454
Joined: 29 Apr 2015, 15:11
Location: Pretoria, RSA
Name: Erich

Re: Simple corner clamping jig

Postby 9fingers » 10 Jul 2015, 13:29

Thanks Erich
They are made from offcuts of MRMDF 18 mm thick but most other material would be fine.


HTH

Bob
Information on induction motors here
https://drive.google.com/file/d/0B_GZrX ... sp=sharing
Email:motors@minchin.org.uk
User avatar
9fingers
Old Oak

Posts: 3182
Joined: 21 Jul 2014, 20:22
Location: Romsey Hampshire between Southampton and the New Forest
Name: Bob

Re: Simple corner clamping jig

Postby Commander » 13 Jul 2015, 19:41

I will make a note of that!
Commander
Sapling

Posts: 454
Joined: 29 Apr 2015, 15:11
Location: Pretoria, RSA
Name: Erich
