Turning plywood - a vase

Postby selectortone » 29 Sep 2019, 14:00

Our competition this month at my woodturning club was to make something out of plywood.

I've never done this before, but we had a very informative demo from one of our senior turners and it intrigued me enough to have a go. One thing I have going for me is that, if they teach you one thing at luthiery school, it's how to glue lots of little fiddly bits of wood together!

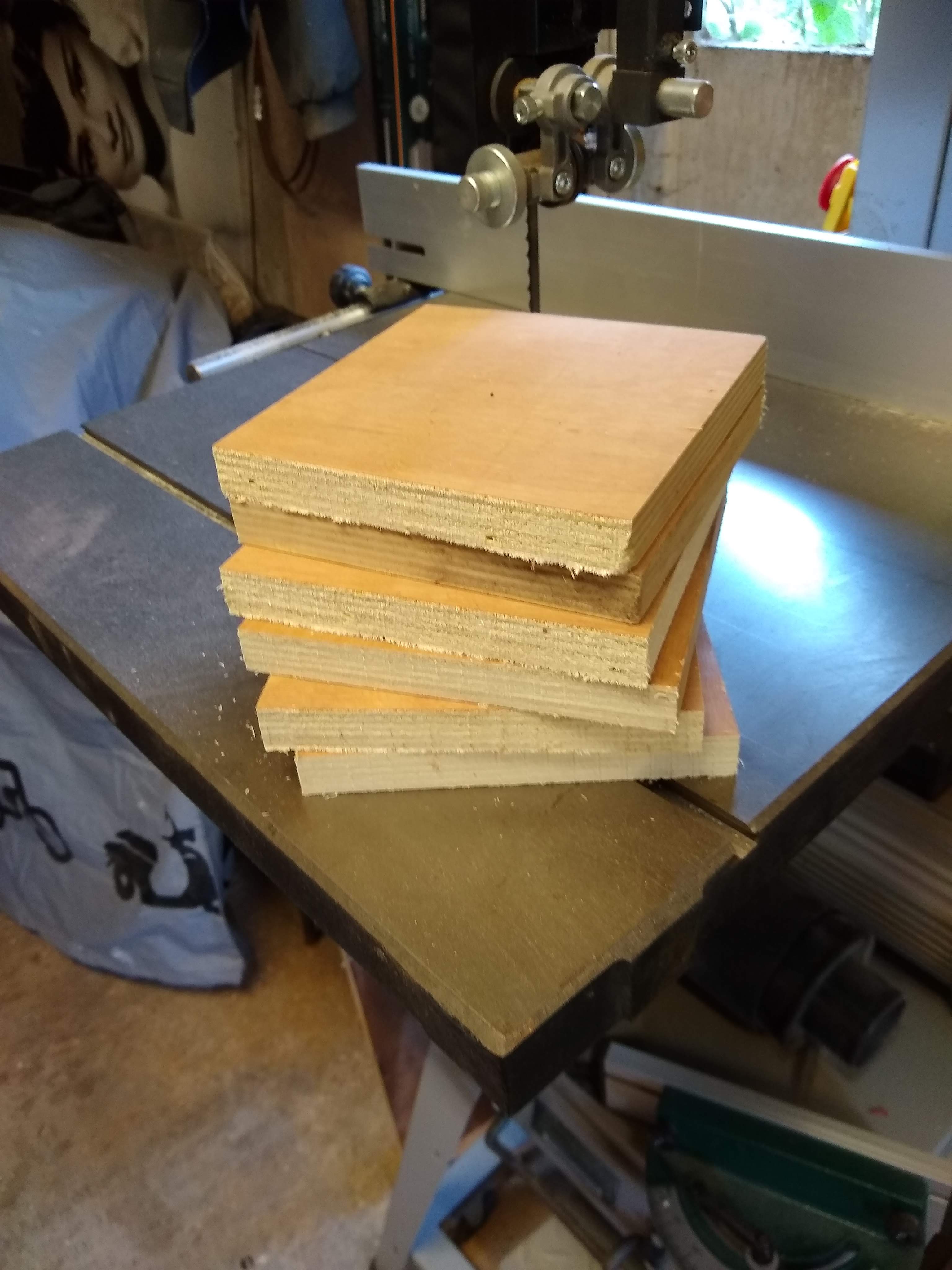

So: you start with a lot of this:

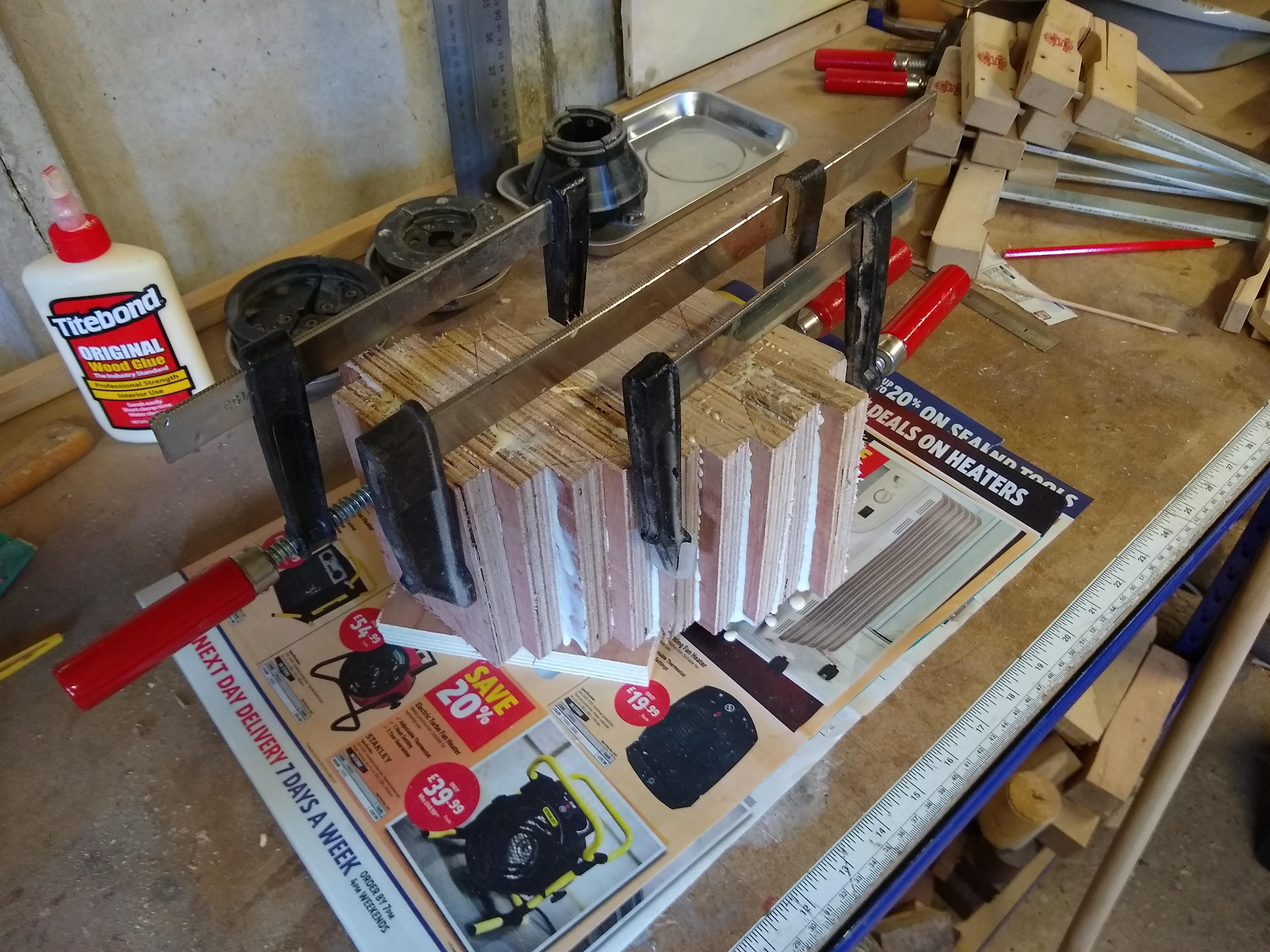

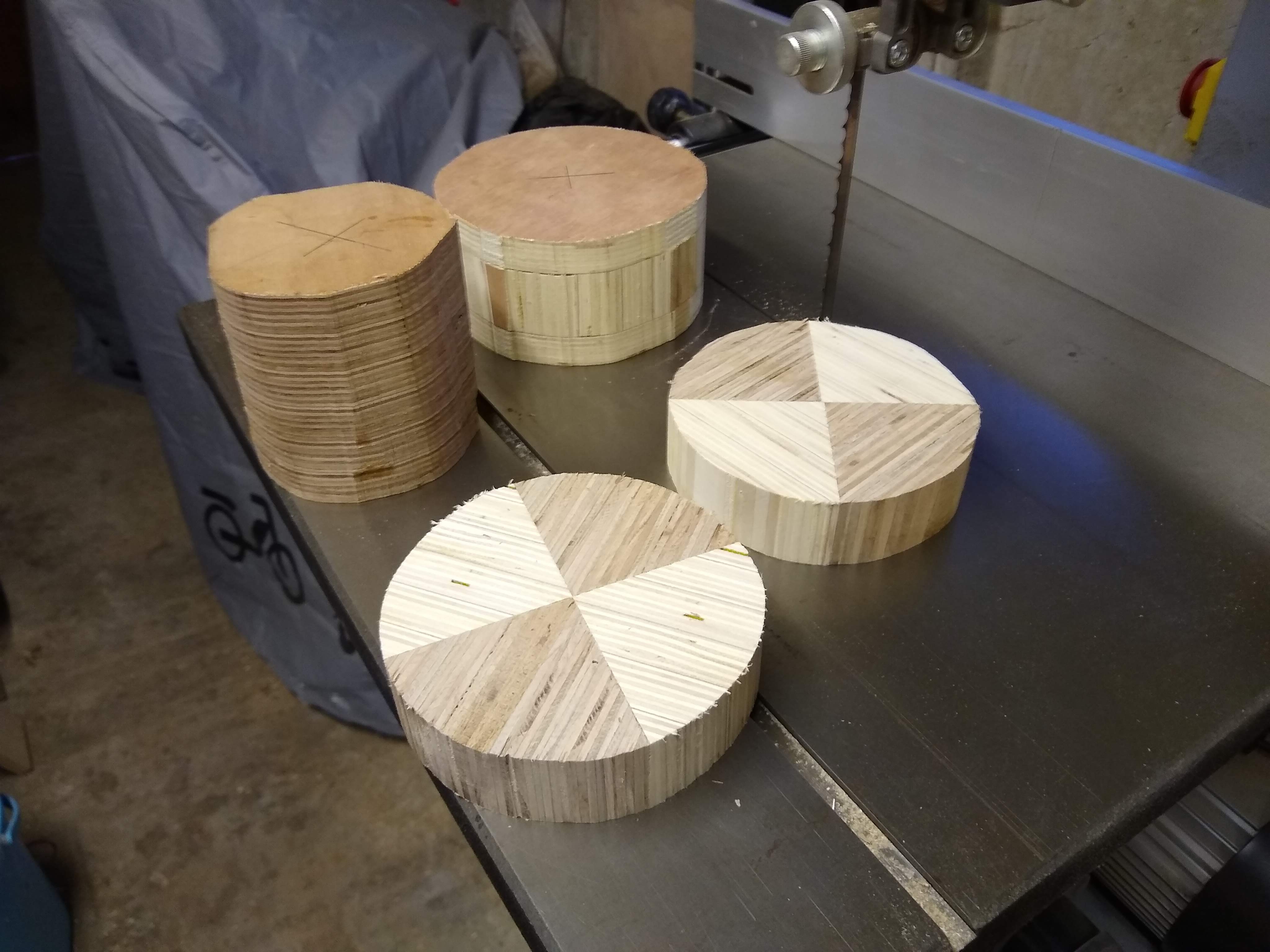

Cut it up, mitre it to bits and glue it all back together again:

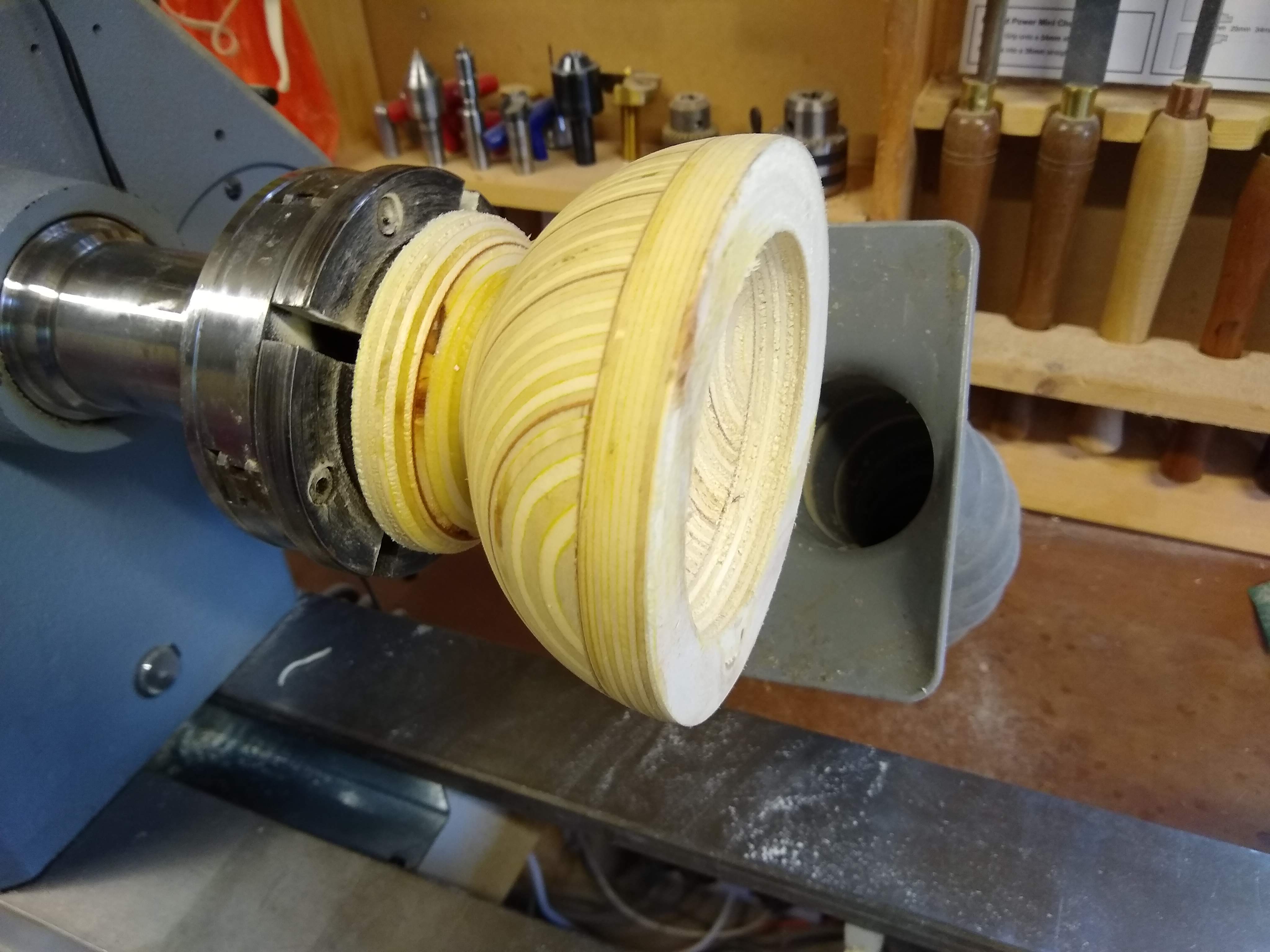

Some more glueing up, then turn the bottom half of the vase bowl:

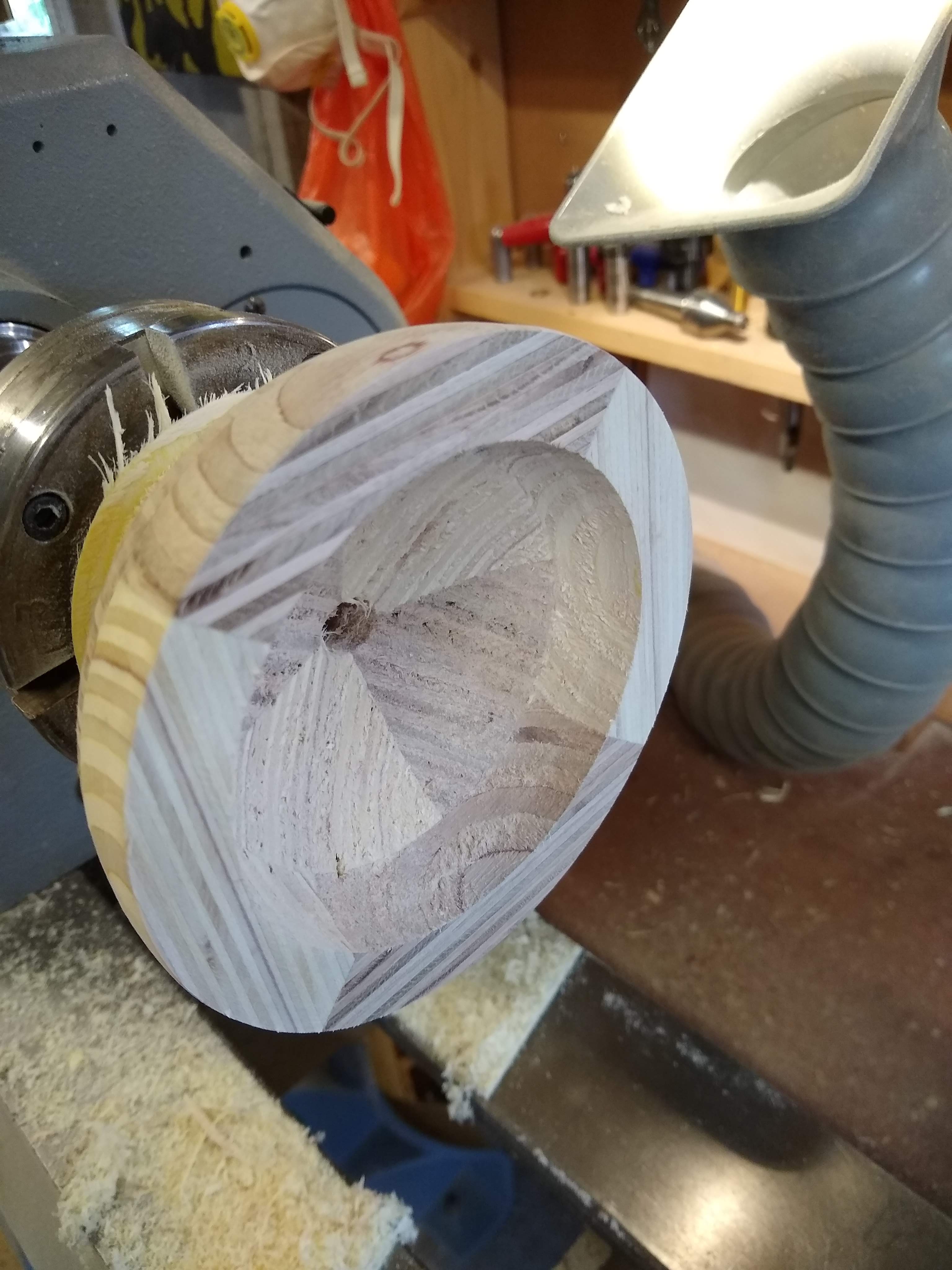

Then the top half:

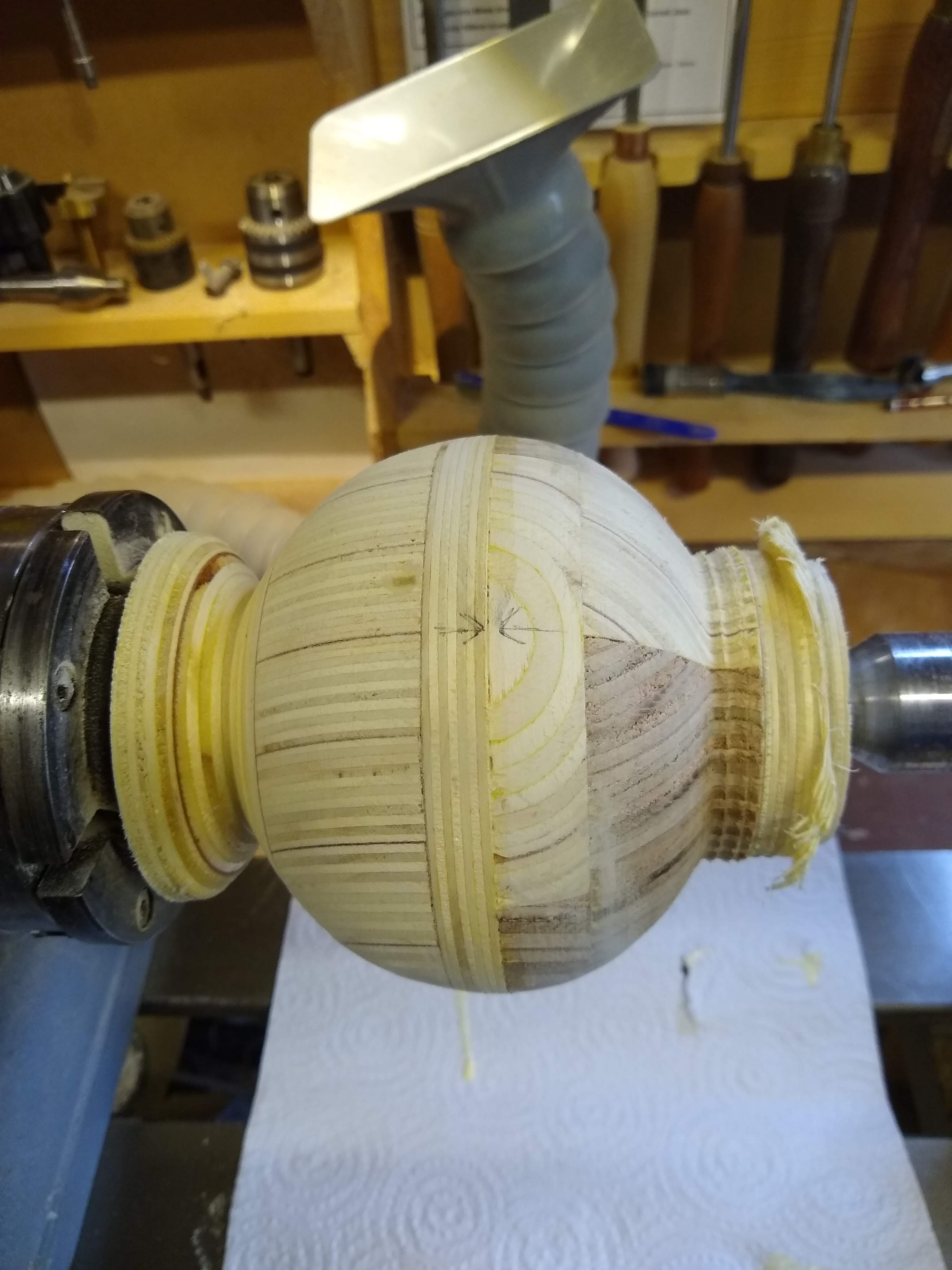

Glue them together:

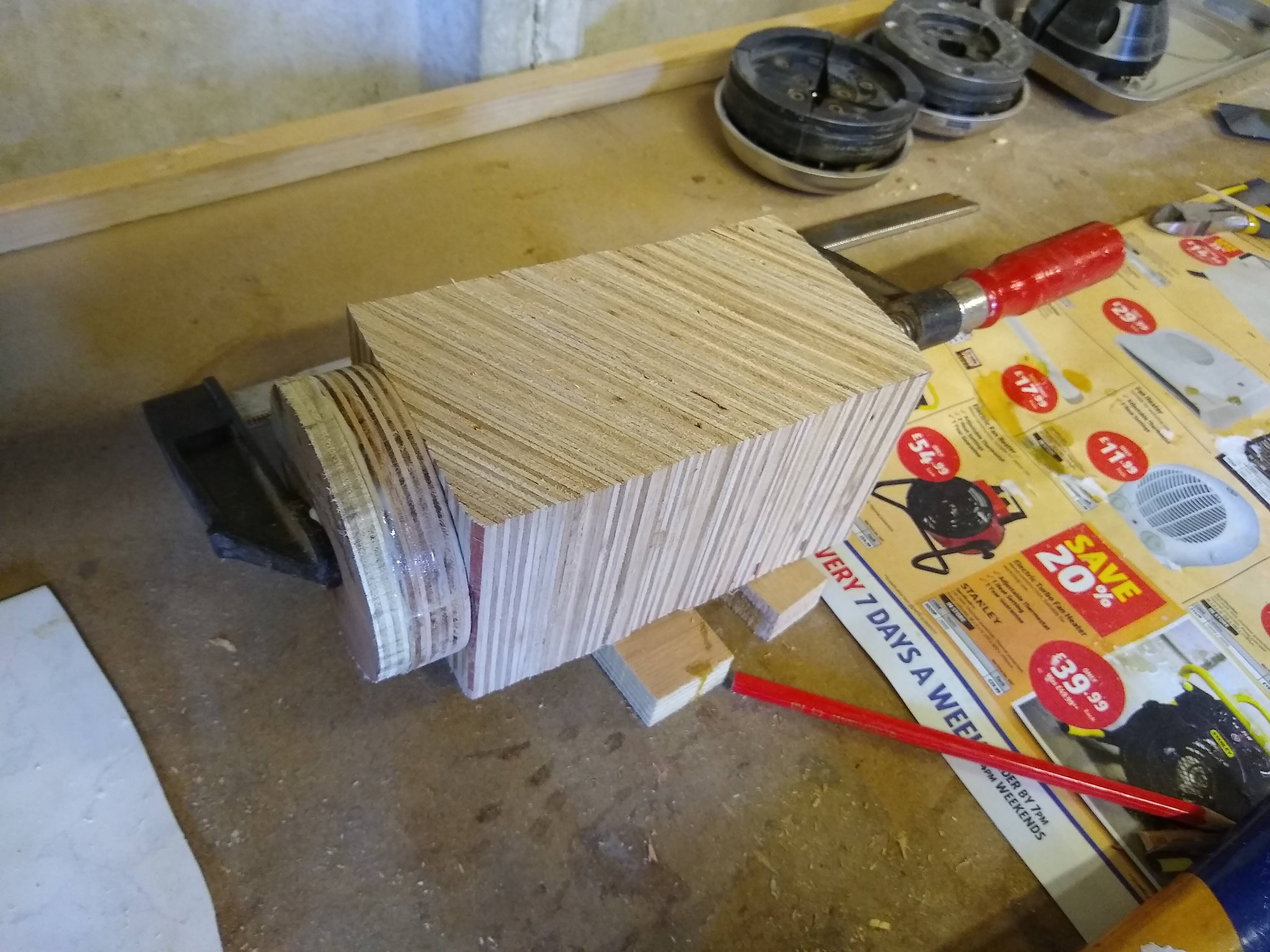

Glue some more for a neck (offset to get a 45deg angle):

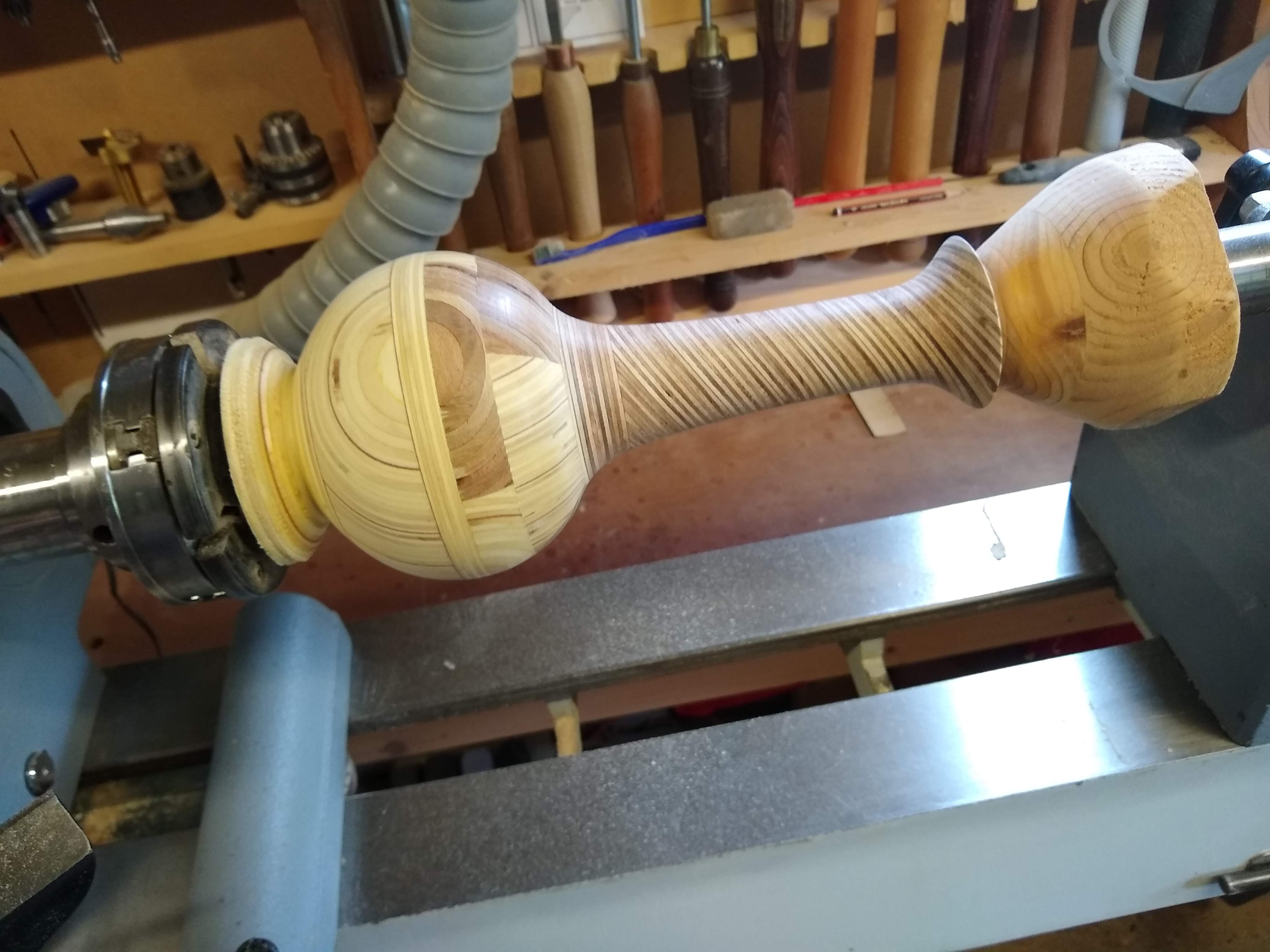

Turn the neck (sorry, no pic) and then glue that on and turn to the finished article:

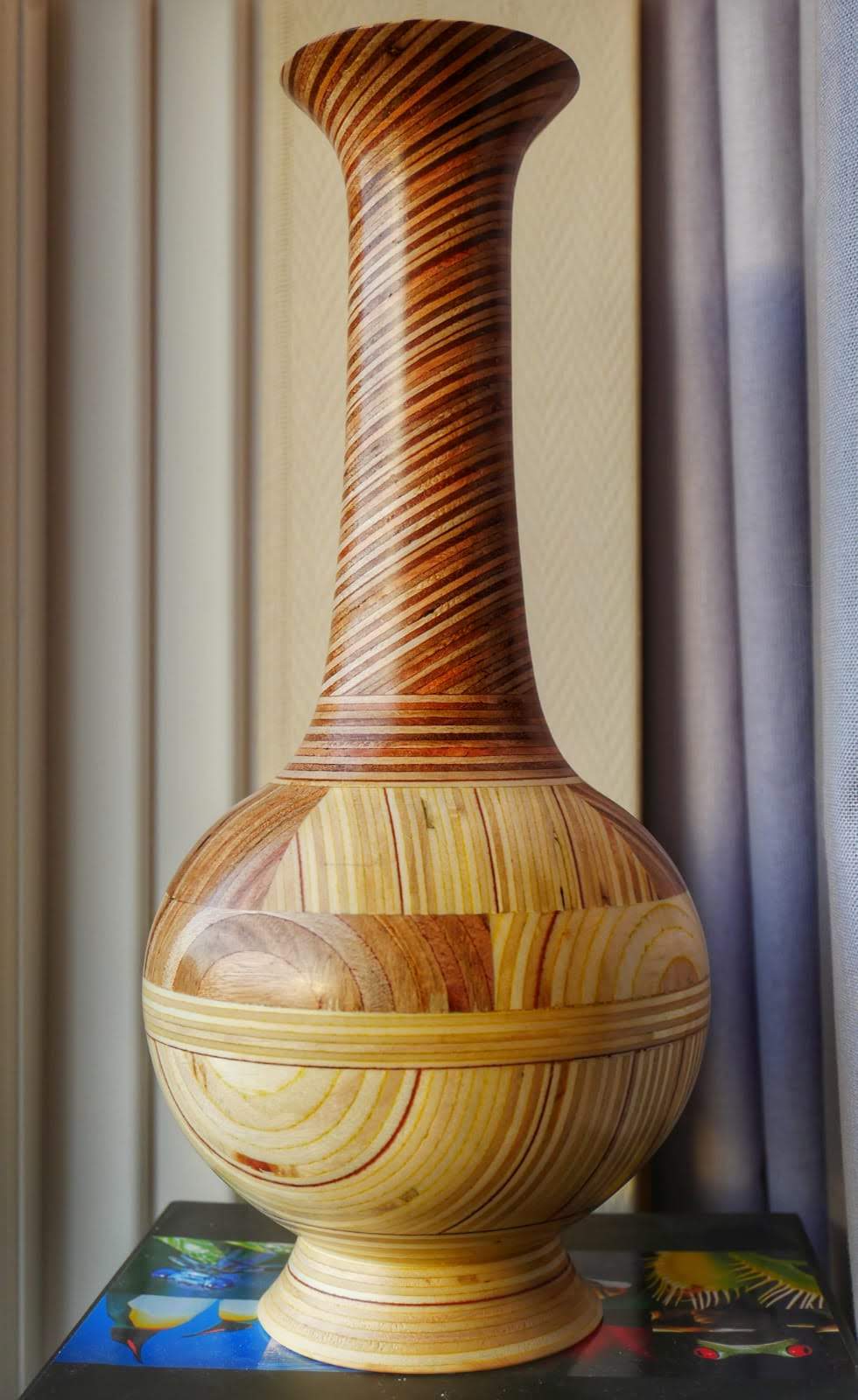

Slap on some paste wax, and voila:

User avatar
selectortone
Sapling

Posts: 288
Joined: 26 Jan 2017, 23:43
Location: Sunny Bournemouth by the Sea
Name: Terry

Re: Turning plywood - a vase

Postby Malc2098 » 29 Sep 2019, 14:04

Really nice.

I've got a couple of lamp bases bought from a charity shop of similar style.
Malcolm
User avatar
Malc2098
Old Oak

Posts: 3526
Joined: 03 Jul 2016, 11:10
Location: Tiverton
Name: Malcolm

Re: Turning plywood - a vase

Postby Woodster » 29 Sep 2019, 16:21

And a worthy winner of the competition. ;)

Oh, and Titebond would be proud of you as well! :lol:
Last edited by Woodster on 29 Sep 2019, 20:39, edited 1 time in total.
User avatar
Woodster
Nordic Pine

Posts: 592
Joined: 26 Jan 2017, 13:17
Location: Dorset
Name:

Re: Turning plywood - a vase

Postby DaveL » 29 Sep 2019, 16:46

Yes very nice, you have some good plywood there.
Regards,
Dave
My tool kit is almost complete, only a few more to get.
User avatar
DaveL
Old Oak

Posts: 1168
Joined: 21 Jul 2014, 21:07
Location: Sudbury, Suffolk
Name: Dave

Re: Turning plywood - a vase

Postby Andyp » 29 Sep 2019, 17:36

Clever. And I guess that is not B&Poo off the shelf plywood, ie I see no voids. Do let us know how you got on in the comp.
cheers

Andy
“Sometimes I sits and thinks, and sometimes I just sits...” A.A. Milne

Doing my best to achieve Wabi Sabi
User avatar
Andyp
Sequoia

Posts: 5874
Joined: 22 Jul 2014, 07:05
Location: 14860 Normandy, France
Name: Andy

Re: Turning plywood - a vase

Postby selectortone » 29 Sep 2019, 18:12

Andyp wrote:I guess that is not B&Poo off the shelf plywood, ie I see no voids.


Actually it is - or similar quality. Definitely not marine or birch ply anyway. I bought a couple of 8 x 4 sheets of 18mm from my local builders merchant a few years ago when I was building benches for my workshop. The offcuts have been hanging around in there ever since, along with some 12mm that actually was from B&Q. Another useful thing they teach you at luthier school is grain filling. Rustins grain filler is your friend there.
User avatar
selectortone
Sapling

Posts: 288
Joined: 26 Jan 2017, 23:43
Location: Sunny Bournemouth by the Sea
Name: Terry

Re: Turning plywood - a vase

Postby Dalboy » 29 Sep 2019, 19:32

Well done hope it does well.

The only thing for me is the top half of the round section It would look better if it mirrored the bottom and then have the neck as you have done. It just looks too fussy with all the different directions of the ply.

That still does not distract from the good glue-ups with no gaps and the shape of the whole is very pleasing as well as the finish looks good from the photo
Dalboy
Nordic Pine

Posts: 872
Joined: 29 Aug 2014, 11:16
Name:

Re: Turning plywood - a vase

Postby Rod » 29 Sep 2019, 23:51

Very clever

Rod
User avatar
Rod
Old Oak

Posts: 4074
Joined: 21 Jul 2014, 21:34
Location: Winchester, Hampshire
Name:

Re: Turning plywood - a vase

Postby paulrees1 » 30 Sep 2019, 10:39

Brilliant


Sent from my iPhone using Tapatalk Pro
paulrees1
Seedling

Posts: 32
Joined: 13 Aug 2015, 07:56
Name:

Re: Turning plywood - a vase

Postby Woodbloke » 30 Sep 2019, 12:42

Very clever. Andy Pickard over in Devizes does a lot of segmented turned stuff; quite an art to get all the segments in exactly the right place - Rob
I no longer work for Axminster Tools & Machinery.
User avatar
Woodbloke
Old Oak

Posts: 1671
Joined: 22 Jul 2014, 10:06
Location: Salisbury, UK
Name: Rob Stoakley

Re: Turning plywood - a vase

Postby Mike G » 30 Sep 2019, 14:02

No mention of a hole up the middle, so I'm calling this for what it is: a mallet. :)
User avatar
Mike G
Old Oak

Posts: 4212
Joined: 30 Jul 2014, 22:36
Location: Somewhat less of a hovel
Name:

Re: Turning plywood - a vase

Postby selectortone » 01 Oct 2019, 09:40

User avatar
selectortone
Sapling

Posts: 288
Joined: 26 Jan 2017, 23:43
Location: Sunny Bournemouth by the Sea
Name: Terry

Re: Turning plywood - a vase

Postby Mike G » 01 Oct 2019, 10:26

:lol: :lol: Oh OK.....a hollow mallet. Filled with sand, that could be quite effective.
